Product Description

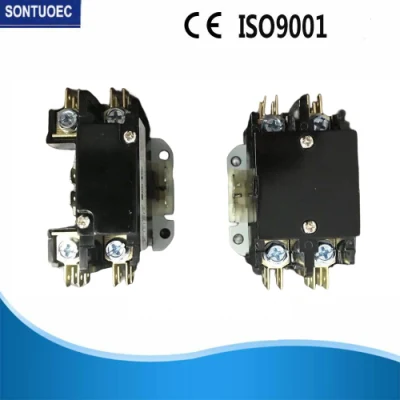

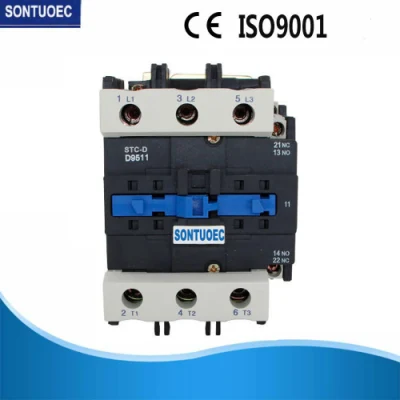

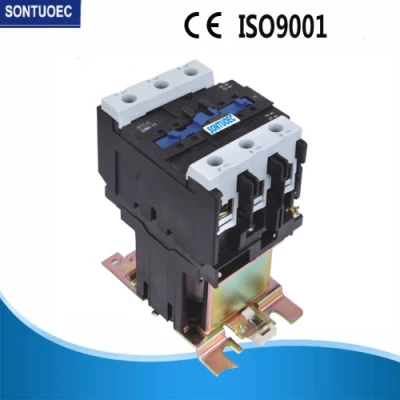

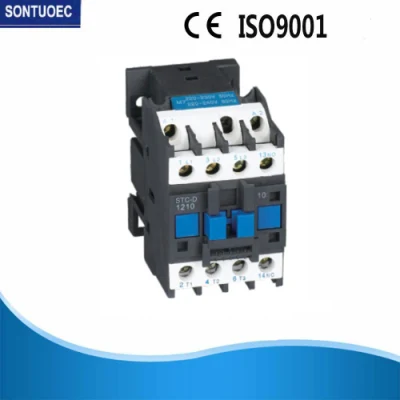

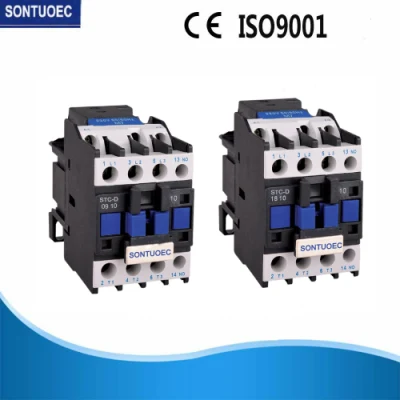

SONTUOEC Professional STC-D 12/ 24V/36V/48/110V/220V Dc Contactor LC1-D type factory price :
STC-D series DC contactors is for using in the AC circuit up to the rated voltage 660V AC 50Hz or 60Hz, rated current 95A, to connect or disconnect and frequent start/stop/control the AC motor. They can be combined together with auxiliary contact group, air delayer, mechanical interlocking contactors and etc, to constitute delayer, reversible contactor or star-triangle starter. They can also be organized into electromagnetic starter by combined with the thermal relay.
Specification:
| Type | LP1-D09 | LP1-D12 | LP1-D18 | LP1-D25 | LP1-D32 | LP1-D40 | LP1-D50 | LP1-D65 | LP1-D80 | LP1-D95 | ||
| Rated working current(A) | 380V | AC3 | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
| AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 44 | ||
| 660V | AC3 | 6.6 | 8.9 | 12 | 18 | 21 | 34 | 39 | 42 | 49 | 55 | |
| AC4 | 1.5 | 2 | 3.8 | 4.4 | 7.5 | 9 | 12 | 14 | 17.3 | 21.3 | ||
| Rated heat current(A) | 25 | 25 | 32 | 40 | 50 | 60 | 80 | 80 | 125 | 125 | ||
| Controllable power(kW) | 220/240V | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 | |
| 380/400V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | ||
| 415V | 4 | 5.5 | 9 | 11 | 15 | 22 | 30 | 37 | 45 | 45 | ||
| 500V | 5.5 | 7.5 | 10 | 15 | 18.5 | 22 | 30 | 37 | 55 | 55 | ||
| 600/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 55 | ||
| Weight(Kg) | DC contactor | 0.64 | 0.34 | 0.65 | 0.65 | 0.95 | 2.185 | 2.185 | 2.185 | 2.525 | 2.525 | |
| Measure(Mm)3 | DC contactor | 76x115 x47 | 76x115 x47 | 76x120 x47 | 76x130 x59 | 86x135 x59 | 128x175 x81 | 128x175 x87 | 128x175 x87 | 128x183 x87 | 128x183 x87 | |
| Pole | 3,4 | 3,4 | 3 | 3,4 | 3 | 3,4 | 3,4 | 3,4 | 3,4 | 3,4 | ||
| Rated working voltage(V) | 380,660 | |||||||||||
| Rated insulation voltage(V) | 660 | |||||||||||
| Mechanical life x104 | 1000 | 1000 | 1000 | 1000 | 800 | 800 | 800 | 800 | 600 | 600 | ||
| Electrical life | AC3x104 | 100 | 100 | 100 | 100 | 80 | 80 | 80 | 80 | 60 | 60 | |
| AC4x104 | 20 | 20 | 20 | 20 | 20 | 15 | 15 | 15 | 10 | 10 | ||
| Operating frequency | Electrical life | AC3x104 | 1200 | 1200 | 1200 | 1200 | 600 | 600 | 600 | 600 | 600 | 600 |
| AC4x104 | 300 | |||||||||||
| Mechanical life x104 | 3600 | |||||||||||
| Rated controlled voltage (V) | 24-660 | |||||||||||
| Working voltage | Close | DC% | 0.85-1.1Us | |||||||||
| Open | AC% | 0.10-0.75Us | ||||||||||
Q 1. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of B/L.
Q 2. how's the delivery time ?
A. usually it will take about 25 days for production.
Q 3. tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q4.Could you offer Form A or C/O ?
A. It's totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q6. How long do your guarantee ?
A. 12months.
