Basic Info.
Model NO.
KNL1-63
Type
Circuit Breaker
Function
RCCB
Certification
CE, CB
Sensibility
Atype;Actype
Rated Working Voltage
240V/415V
Rated Limiting Short-Circuit Current
3000A
Transport Package
Carton
Specification
IEC/EN61008.1 and GB16916.1
Trademark
KORLEN
Origin
Wenzhou; Zhejiang; China
Production Capacity
5000000PCS/Year
Product Description

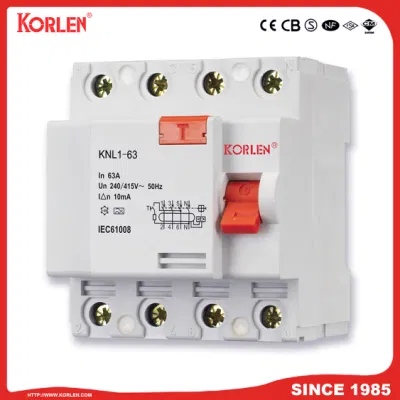

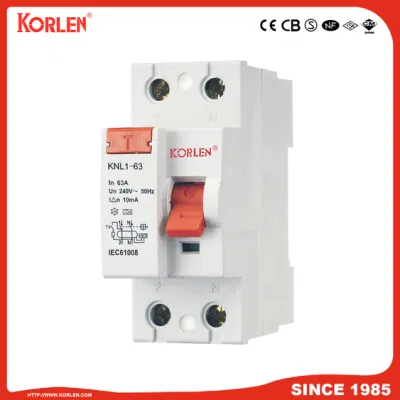

High Quality 3p Ezc Compact Circuit Breaker
KNL1 series Residual current circuit breaker(without over-current protection) is suitable for the line of A and S 50/60Hz, voltage 240V(2pole)/415V(4pole), rated current up to 63A. When there is human electricity shock or if the leakage current of the line exceeds the prescribed value, it will cut off the power rapidly to protect human safety and prevent the accident due to the current leakage. It can be used as infrequent changeover of the line in normal situation.It is applicable to industrial site, commercial site, tall building and civil house.
Company Introduction
Wenzhou Korlen Electric Appliances Co., Ltd, It is a joint venture. My company is a manufacturer including design, development, produce and sale, professional producing MCB, MCCB, RCCB and AC contactor etc. Product enterprises. The company owns import and export power of self-run, expanding Europe and America, Middle East, Southeast Asia etc. Market, set a good Public praise.
The company have more than 1500 workers, including senior engineer among them, engineer at inside of more than 100 technician. And then set up to cover area more than 50 acres, construct area is more than 38000 square meters of the modern industrial zone, providing with the forerunner's standard laboratory and various examination equipments.
Under Korlen people to make great effort unremittingly, designed and developed by oneself, develop and produce the series of MCB, RCCB filled up local blank, attain inter-national advanced level, and acquire more than 20 national patents. The company acquires "30 strong eminent enterprises, top ten of export income, yueqing star class enterprise, attach importance to contract and keeps promise" title of honor for many times past years. Company still the initiative pass ISO 9001 management system verification and 14001 environments management system verification. Our product passed quality verification of domestic and international authority organization like the CB\ SEMKO\ NF\ SIRIM\ SNI\ CE \PCT\ TSE, In the meantime high breaking capacity breaker of our company in this city is the unique product which got " Yueqing famous brand product" by Yueqing people government.
Korlen Electric Appliances is willing to make friends with social public, the world outside businessman join hands together for prosperous society and development to build a brighter future.
Certificates
Factory Lines
Exhibition
KNL1 series Residual current circuit breaker(without over-current protection) is suitable for the line of A and S 50/60Hz, voltage 240V(2pole)/415V(4pole), rated current up to 63A. When there is human electricity shock or if the leakage current of the line exceeds the prescribed value, it will cut off the power rapidly to protect human safety and prevent the accident due to the current leakage. It can be used as infrequent changeover of the line in normal situation.It is applicable to industrial site, commercial site, tall building and civil house.
| FRAME CLASS | 63A |
| RATED WORKING VOLTAGE | 240/415V |
| RATED FREQUENCY | 50/60HZ |
| RATED WORKING CURRENT | 16,20,25,32,40,50,60A |
| RATED RESIDUAL OPERATING CURRENT | 0.03,0.1.0.3,0.5A |
| RATED RESIDUAL UN-OPERATING CURRENT | 0.015,0.05,0.15,0.25A |
| SENSIBILITY | A TYPE, AC TYPE,S TYPE |
| MAXIMUM OPERATING TIME | I Δn t≤0.1s, 5IΔn t≤0.04s |
| RATED MAKING AND BREAKING CAPCAITY | In≤50A 500A,In=63A 630A |
| LIMITING VALUE OF UN-OPERATING CURRENT | 6In |
| RATED LIMITING SHORT-CIRCUIT CURRENT | 3000A |
| POLE NUMBER | 2,4P |
| MECHANICAL LIFE | 10000 |
| ELECTRIC LIFE | 4000 |
