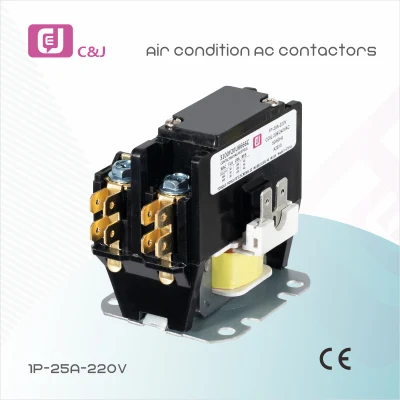

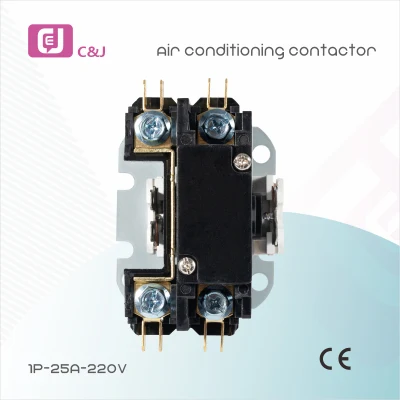

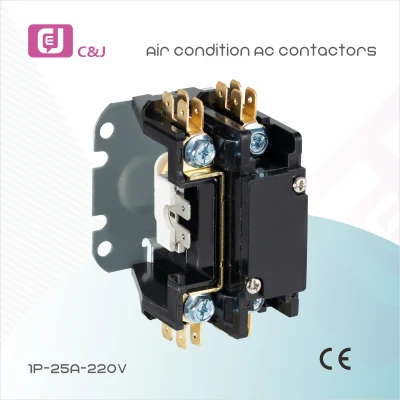

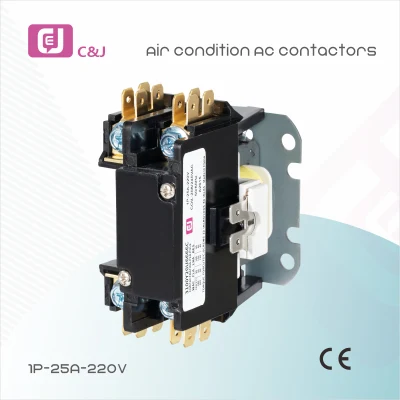

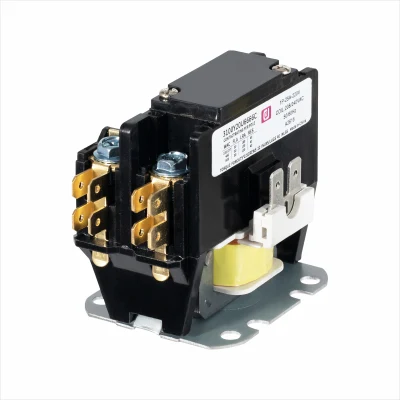

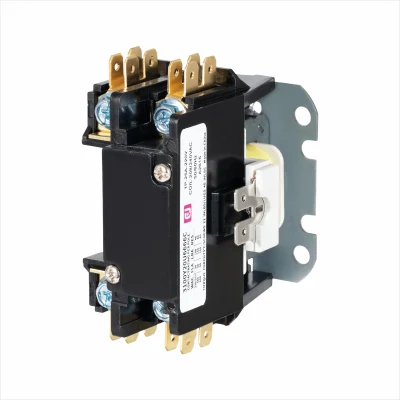

Product Description
Features
·Straight-Through Wiring, Replaces 1 1.5 Pole Devices Used Primarily in Residential Central Air Conditioning
·Replaces many Type 117 contactors used by OEM
·Universal style mounting bracket fits existing mounting holes.
·Screw terminals and " quick connect terminals for easy installation.
| Temperature Range | -40 ºF to 150 ºF |
| Mechanical Life (no load) | Conforms to UL and ARI specifications |
| Electrical Life | Conforms to UL and ARI specifications 94-388 thru 94-390 achieve 200,000 cycles, make LRA at. 5 pf, break 125% of FLA at. 75 pf at rated voltage, 10,000 cycles make and break LRA at.5 pf rated voltage 94-394 thru 94-369 achieve 100,000 cycles, make LAR at.5 pf at rated voltage 6,000 cycles make and break LEA at .5 pf rated voltage |
| Weight (approximate) | 9.25 oz |
| Coils Frequency | 50/60 Hz |
| Coil Insulation | Class B (130) |
| Termination | Screw and Double Q.C. |
| Operate | 85% of nominal coil coltage;110% maximum safe operate |
| Duty Cycle | Continuous |
COIL DATA
| Steveco Number | Voltage AC | Ress DC OHMS | Current MA | Nominal VA | Max. Inrush VA |
| 30 Amp 40 Amp | |||||
| CJC2-388 CJC2-394 | 24 | 16.5 | 208 | 5 | 20 |
| CJC2-389 CJC2-395 | 120 | 420 | 42 | 5 | 20 |
| CJC2-390 CJC2-396 | 208/240 | 1825 | 21 | 5 | 20 |
Contact Ratings
| Type | Voltage | FLA | LRA | RES |
| CJC2-388 thru CJC2-390 | 277 | 30 | 150 | 40 |
| 480 | 30 | 75 | 40 | |
| 600 | 30 | 50 | 40 | |
| CJC2-394 thru CJC2-396 | 277 | 40 | 200 | 50 |
| 480 | 40 | 100 | 50 | |
| 600 | 40 | 80 | 50 |
CEJIA has over 20 years of experience in this industry and has built a reputation for providing quality products and services at competitive prices. We are proud to be one of the most reliable electrical equipment suppliers in China with more. We attach great importance to product quality control from raw materials procurement to finished product packaging. We provide our customers with solutions that meet their needs on a local level, while also giving them access to the latest technology and services available.
We are able to produce large volumes of electrical parts and equipment at very competitive prices in our state-of-the-art manufacturing facility located in China.
Q1:Are you a trading company or manufacturer?
A.We are professional manufacturer for low-voltage circuit breaker series products,Integrates research and development, manufacturing, processing and trade departments together. also we supply of different electrical and electronic items
Q2: why will you choice us :
A.more than 20years of professional teams will give you good quality products ,good service ,and reasonable price
Q3: Is the MOQ fixed?
A.The MOQ is flexible and we accept small order as trial order.
....
