Scope of application:
CJ20 series AC contactor (hereinafter referred to as contactor), mainly used in AC 50Hz(or 60Hz), rated working voltage to 660V, rated working current to 630A circuit, for long-distance connecting and breaking the circuit, and can be combined with appropriate thermal overload relay to protect the circuit that may occur operating overload.
Standard :GB/T 14048.4, IEC/EN 60947-4-1.
Normal working conditions and installation conditions
1 The ambient air temperature is :-5ºC~+40ºC, and its average value within 24 hours does not exceed +35ºC.
2 Altitude: no more than 2000m.
3 Atmospheric conditions: the maximum temperature +40C, the relative humidity of the air does not exceed 50%; Higher relative humidity can be allowed at lower temperatures, such as 90% at 20C. Special measures should be taken for occasional condensation due to temperature changes.
4 Pollution level: Level 3.
5 Installation Category: Type III.
6 Installation conditions: The inclination between the mounting surface and the vertical plane is not greater than ±5°.
7 Shock vibration: The product should be installed and used in a place without significant shaking, shock and vibration.

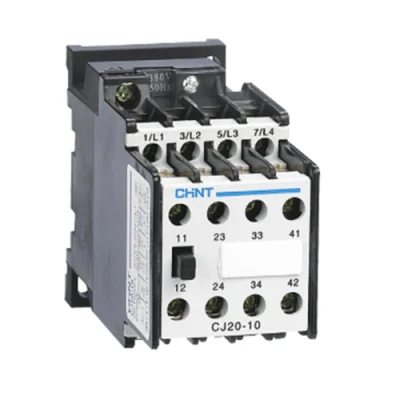

MODEL:CJ20-10

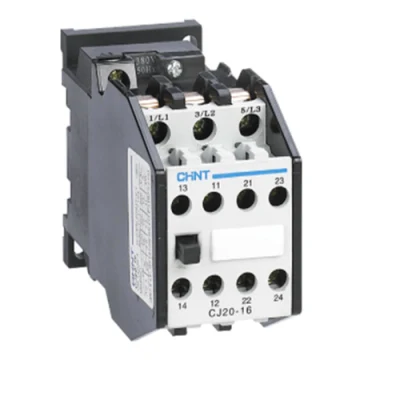

MODEL:CJ20-16

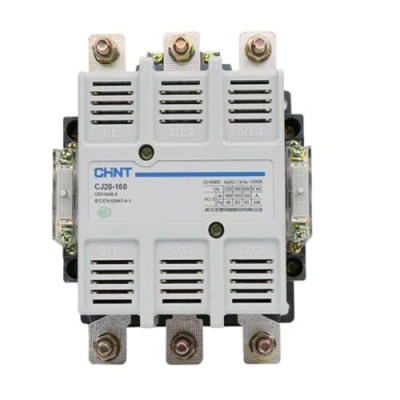

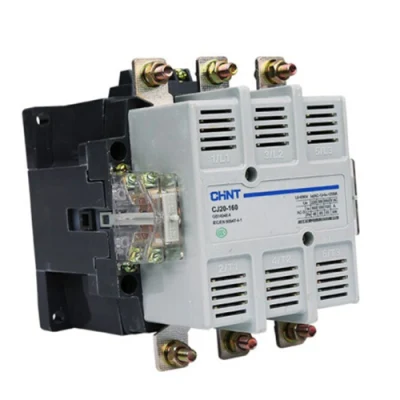

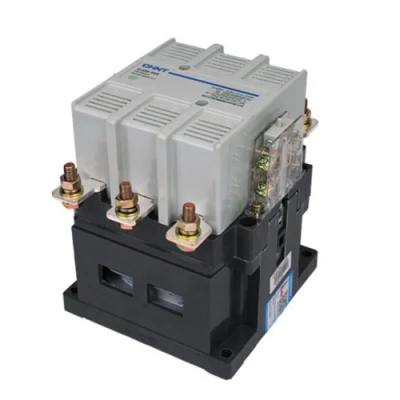

MODEL:CJ20-160
The main parameters and technical performance index of contactor

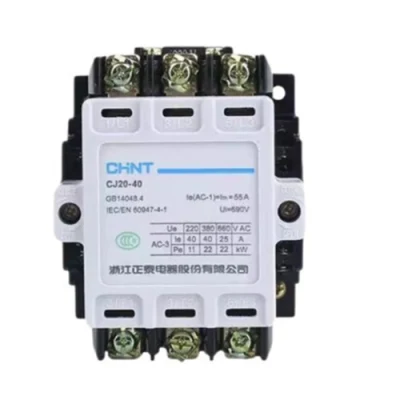

| Contactor type number | Nominal insulation voltage(Ui(V)) | Convention free air heating current(Ith(A)) | AC-3 uses the maximum power of a controllable three-phase squirrel-cage motor under the category(KW) | Number of operation cycles per hour/h(AC-3) | AC3 electrical life(Per 10000 times) | Coil power starting/keep(VA/VA) | Selected fuse type(SCPD) | ||
| 220V | 380V | 660V | |||||||
| CJ20-10 | 690 | 10 | 2.2 | 4 | 4 | 1200 | 100 | 65\9 | gG20 |
| CJ20-16 | 16 | 4.5 | 75 | 11 | 62\9.5 | gG32 | |||
| CJ20-25 | 32 | 5.5 | 11 | 13 | 93\14 | gG50 | |||
| CJ20-40 | 55 | 11 | 22 | 22 | 175\19 | gG80 | |||
| CJ20-63 | 80 | 18 | 30 | 35 | 120 | 480\57 | gG160 | ||
| CJ20-100 | 125 | 28 | 50 | 50 | 570\61 | gG250 | |||
| CJ20-160 | 200 | 48 | 85 | 85 | 855\85.5 | gG315 | |||
| CJ20-250 | 690 | 315 | 80 | 132 | \ | 600 | 60 | 1710\152 | gG400 |
| CJ20-400 | 400 | 115 | 200 | 220 | 1710\250 | gG500 | |||
| CJ20-630 | 630 | 175 | 300 | \ | 3578\91.2 | gG630 | |||
Outline dimensions of CJ20-160
